OnePen

AI-Powered Gesture Recognition for Frictionless Handwritten Note-Taking

TL;DR

OnePen is the first handwriting note-taking app that lets users format and edit notes without ever lifting their hand or touching a toolbar.
By recognizing handwritten gestures in real time, it reduces hand movement and context switching—helping users write up to 30% faster and stay in flow.

I designed and deployed a fully in-browser ML system that recognizes gestures like underline, box, delete, and brackets using a hybrid vision + geometry model, achieving 99.89% accuracy with ~20 ms latency on-device.

🚀 NOT A DEMO · NOT A PROTOTYPE
⭐ OnePen is a published app, used by real users, that measurably improves how people write.

🏆 Winner — “Most Novel Use of AI”, HackUMASS XII

Why it matters (real, practical impact)

Eliminates hundreds of micro-interruptions per session caused by tool switching
Keeps users in a continuous writing flow → less fatigue, faster note-taking
ML directly controls the UI, turning handwriting into beautiful styles flawlessly
Works offline, instantly, and privately (no server, no cloud)

What makes it novel

First app to replace toolbar-based formatting with real-time handwritten gesture recognition
Hybrid ML architecture:
CNN (MobileNetV3) for visual intent + 12 handcrafted geometric features to disambiguate similar strokes
Designed around human motor behavior, not just classification accuracy

Technical highlights

Model: MobileNetV3 + Squeeze-and-Excitation + 12D geometric feature fusion
Performance: 99.89% accuracy · ~20 ms inference · 2.5 MB model
Deployment: 100% client-side with TensorFlow.js (PWA, offline-first)
ML Ops: MLflow-tracked experiments with reproducible pipelines

Stack

TensorFlow / Keras · TensorFlow.js · Python · MLflow · Canvas API · PWA

🔍 Deep Dive

🚨 The Problem

Handwritten note-taking is full of interruptions.
Changing colors, highlighting, erasing, or switching pens forces you to lift your hand, reach for a toolbar, then return to the page.

These tiny actions add up—quietly breaking your flow and focus.

✨ The Solution

OnePen removes that friction.

It’s a handwriting-first note-taking web app powered by AI gesture recognition, allowing you to write, format, and organize naturally—without ever touching a toolbar.

Circle content → Highlight
Underline text → Bold or Title
Draw brackets → Change stroke color

One pen. Zero interruptions.

🎥 Watch Demo →

🚀 Key Features

✍️ Gesture Recognition (ML-Powered)

Quick Draw — Instantly styles strokes (fully customizable):

Gesture	Action
Box	Groups and styles enclosed content
Wavy box	Groups content with alternative styling
Strike-through	Deletes crossed strokes
Box / Curly / Circle brackets	Styles child content within bracket height

Draw + Hold — Opens a radial tool dial

6 gestures × 8 tools = 48 quick-access tools

Draw any gesture (except delete), hold briefly, and select a tool—without lifting your pen.

📚 Study Tools

Tape Flashcards — Mask content with decorative tape (6 styles). Click to reveal.
Auto-Summaries — Generate study sheets from titles, boxes, and highlights.
Table of Contents — Auto-generated from headings for instant navigation.

🧠 Smart Notes

Sticky Notes — Attach floating notes with mini drawing canvases.
Hyperlinks — Draw regions to create clickable links.
Math Solver — Handwritten equations → LaTeX → solved (via Pix2Text).

📦 Media & Export

Insert images / PDFs with resize, rotate, and opacity controls
Google Drive sync with auto-backup every 15 seconds
Offline-first PWA — Works without internet after first load
Share notebooks as portable JSON files

🧩 Technical Overview

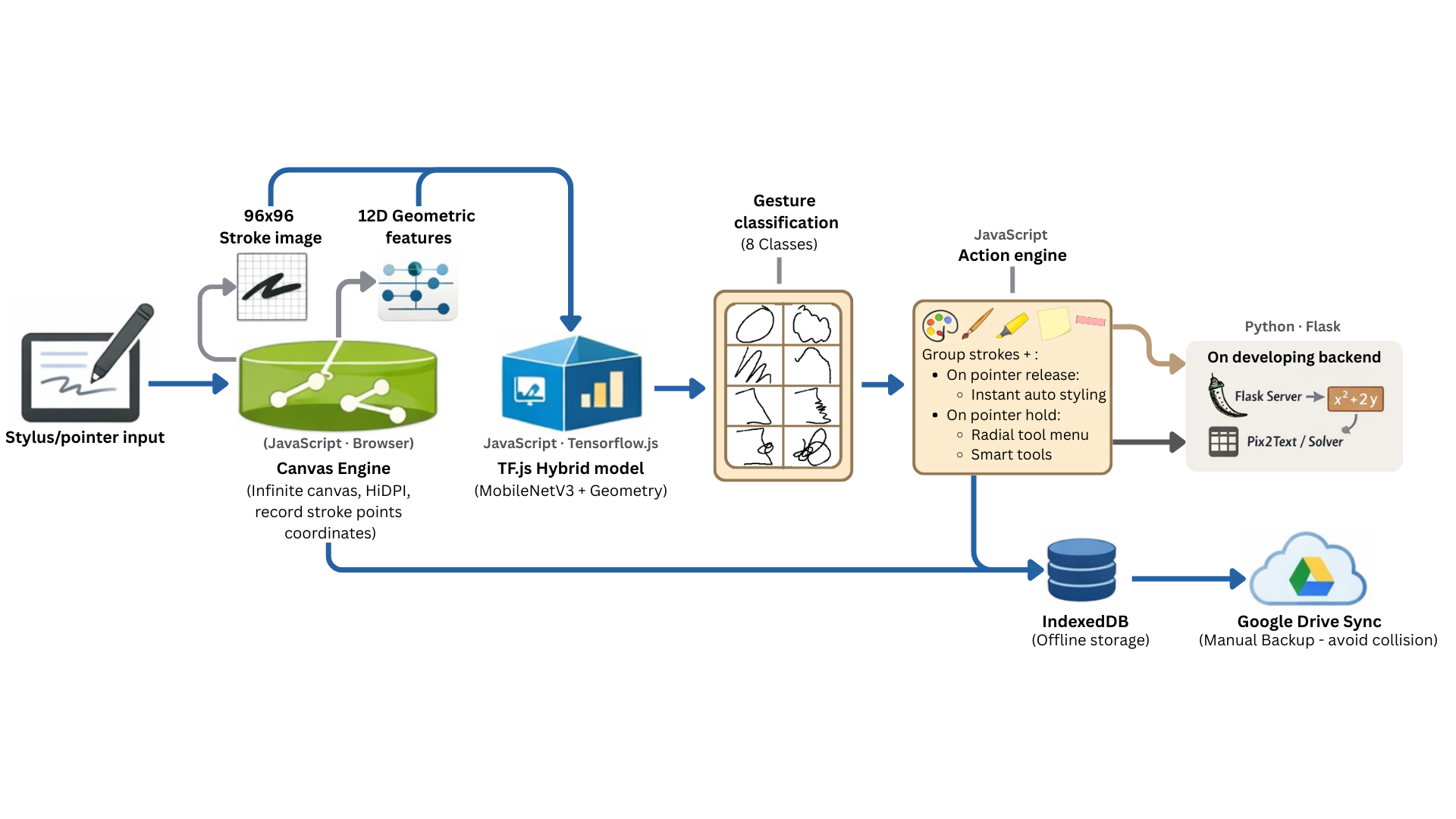

System Architecture

Model Architecture

OnePen uses a hybrid dual-input model that fuses visual and geometric stroke features:

┌─────────────────┐     ┌─────────────────┐
│  96×96 Image    │     │  12D Geometric  │
│    (stroke)     │     │    Features     │
└────────┬────────┘     └────────┬────────┘
         │                       │
         ▼                       ▼
┌─────────────────┐     ┌─────────────────┐
│  MobileNetV3    │     │   Dense 128→64  │
│  + SE Attention │     │  + LayerNorm    │
└────────┬────────┘     └────────┬────────┘
         │                       │
         └──────────┬────────────┘
                    ▼
           ┌───────────────┐
           │    Concat     │
           │   384 → 192   │
           │   + Dropout   │
           └───────┬───────┘
                   ▼
           ┌───────────────┐
           │   8 Classes   │
           │   (softmax)   │
           └───────────────┘

Why hybrid?
Image-only models struggled with visually similar gestures (box vs bracket, underline vs delete).
Adding geometric features improved accuracy by ~5–8%.

The 12 Geometric Features

#	Feature	Why It Helps
1	Closure ratio	Boxes form closed loops
2	Compactness	Underlines are elongated
3	Spread ratio	Underlines have low spread
4	Aspect ratio	Distinguishes wide vs tall
5	Edge fraction	Boxes cluster on edges
6	Point count	Deletes use more points
7	Height diff	Underlines stay below threshold
8	Horizontal variance	Underlines vary in X
9	Total path length	Wavy strokes are longer
10	Perimeter ratio	Size-invariant metric
11	Spine verticality	Deletes are diagonal
12	Vertical variance	Underlines have low Y variance

Model Performance

Model	Accuracy	Size	Inference
MobileNetV3-Large	99.88%	5 MB	30 ms
MobileNetV3-Small (Chosen)	99.89%	2.5 MB	20 ms
EfficientNetV2-B0	—	7 MB	60 ms

Chosen for near-perfect accuracy with ultra-fast browser inference.

Data Pipeline

Custom data collection app (4 writers, varied styles)
Augmentation: rotation, shear, scale, flip (6× data)
Preprocessing: normalization, 96×96 rendering, feature extraction
Full experiment tracking with MLflow

Stroke Samples

Runs entirely in-browser. Optional Flask backend for math solving.

⚡ Quick Start

git clone https://github.com/yourusername/OnePen.git
cd OnePen

python -m venv .venv
source .venv/bin/activate  # Windows: .venv\Scripts\activate
pip install -r requirements.txt

cd app
python -m http.server 8000

### Train Your Own Model

```bash
make dataset   # Preprocess collected data
make train     # Train hybrid CNN (~200 epochs)
make export    # Export to TensorFlow.js

Project Structure

OnePen/
├── app/                      # Progressive Web App
│   ├── index.html           # Main interface
│   ├── draw.js              # Canvas engine (zoom, pan, stylus)
│   ├── predict.js           # TensorFlow.js inference
│   ├── sw.js                # Service worker (offline)
│   └── manifest.json        # PWA manifest
│
├── src/modifiers/           # ML Library
│   ├── models/
│   │   └── architecture.py  # Hybrid CNN definition
│   ├── features/
│   │   └── geometric.py     # 12D feature extraction
│   └── data/
│       ├── loader.py        # Dataset loading
│       └── augmenter.py     # Data augmentation
│
├── scripts/                 # CLI Tools
│   ├── train.py            # Training script
│   └── export.py           # TF.js export
│
├── config/config.yaml       # Hyperparameters
└── mlruns/                  # MLflow experiments

Tech Stack

Layer	Technologies
Frontend	Canvas API, TensorFlow.js, IndexedDB, Service Workers
ML	TensorFlow/Keras, MobileNetV3, Squeeze-and-Excitation
Backend	Flask, Pix2Text (math), Google Drive API
DevOps	MLflow, pytest, ruff, mypy

What I Learned

Feature engineering matters — Hand-crafted geometric features outperformed adding more CNN layers; however, not all features help, adding them even make the model worse.
Augmentation - Augmentation is very helpful, generating many more realistic data samples without manually collecting data. However, it is needed to be handled carefully or it would break the characteristics of the unique classes.
Hybrid models — Combining different input modalities (image + vector) requires careful normalization
Browser ML constraints — Model size and inference speed directly impact UX; MobileNet’s efficiency was key
Data diversity — Collecting from multiple handwriting styles prevented overfitting to my own gestures

License

MIT

Author

Andy Huynh — GitHub
